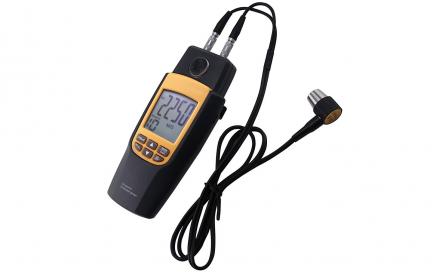

Ultrasonic Pipe Wall Thickness Gauge.

Our ultrasonic pipe wall thickness testers work on materials from 1.2 to 220mm and also outputs the ultrasonic wave velocity measurement function from 1000~9999 m/s.

Complete with features like memory for user-defined materials wherein the user can set & save their sample materials, adjustable ultrasonic velocity, selectable mm & inch measurement unit, coupling indication and built-in metal block for calibration (4mm), low battery indication and power off functions.

It can be used to a wide variety of materials including iron, steel, glass, plastics, toughened tile, brass, gold, silver, zinc, water (at 20°C) and other materials.


Features

  • Measuring pipe wall thickness for materials such as steel, aluminium, copper, glass, etc.
  • Ultrasonic wave velocity or thickness display
  • Manual material selection
  • Adjustable ultrasonic wave velocity
  • Selectable thickness unit, "mm" or "inch"
  • Ultrasonic wave velocity testing
  • Set & save your own materials (up to 5 memory)
  • Coupling state display
  • Fast response of just 0.6sec
  • Auto timed power off
  • Low battery voltage indication
  • Built-in calibration metal block (4.0mm)
  • Software calibrating to ensure high reliability
  • Tested according to European international guidelines and standards (CE Marking)


Specifications

  • Designed according to EMC Directive: 2004/108/EC
  • Ultrasonic wave frequency: 5 MHz
  • Digital display: 4 digits
  • Measurement Range: 1.2~220mm (steel)
  • Ultrasonic wave velocity: 1000~9999m/s
  • Resolution: 0.1mm
  • Accuracy: ± (1% H + 0.1mm)
  • Measurement Rate: 0.6 seconds
  • Power supply: 3 x 1.5V AAA Batteries (Included)
  • Operating Temperature: -10~50°C (14~122°F)
  • Storage Temperature: -40~70°C (-40~158°F)
  • Size: approx. 165 x 60 x 30mm
  • Weight: approx. 210g (batteries and probe included)

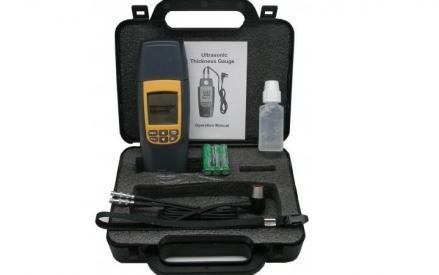

 Set Includes
  • 1 x Ultrasonic Thickness Meter
  • 1 x Ultrasonic sensor probe
  • 1 x Coupling Paste
  • 1 x Lanyard
  • 1 x Operating Manual
  • 3 x AAA Batteries
  • 1 x Protective carrying case
    Purchase Price £350+VAT  Web shop purchase link
